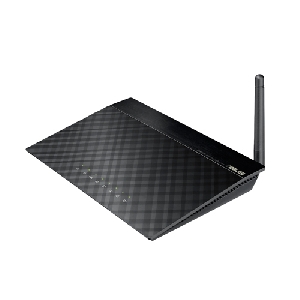

ASUS RT-N10LX 150Mbps Wireless-N Router Black NEW Full Package
5 in stock
Qty:
ASUS RT-N10LX 150Mbps Wireless-N Router Black NEW Full Package
網路技術標準IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4網路埠規格1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN
傳輸量802.11b : 1, 2, 5.5, 11Mbps 802.11g : 6,9,12,18,24,36,48,54Mbps 802.11n : up to 150Mbps按鈕WPS Button, Reset Button, Power Button
天線外部 2 dBi 天線 x 1LED 指示燈PWR x 1 / LAN x 4 / WAN x 1
運作頻率2.4GHz電源規格AC 輸入: 110V~240V(50~60Hz) DC 輸出:12 V 最大0.5 A 電流
加密模式64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, 支援 WPSE環境Operating Temperature: 0 °C to 45 °C ( °F to ºF) Storage Temperature: -20 ° to 70 ° C ( °F to °F) Operating Humidity: 10 % to 90 % (Non-condensing) Storage Humidity: 5 % to 90 % (Non-condensing)
防火牆與進階功能Firewall: NAT and SPI (Stateful Packet Inspection) Filtering: Port, IP packet, URL Keyword, MAC address產品尺寸168 x 124 x 30 mm (LxWxH)
管理程式DHCP重量210 g
連線類型網路連線類型 : 浮動 IP, 固定 IP, PPPoE(支援 MPPE), PPTP, L2TP包裝內容RT-N10 LX Wireless Router RJ-45 Cable Power Adapter Warranty Card Quick Start Guide Support CD (User Manual & Utility Software)
工具程式Device Discovery Firmware Restore Setup Utility

ASUS RT-N10 LX supports 802.11 b/g/n and has 150 Mbps high speed. With CD free easy installation and stable data transmission, (RT-N10 LX is the basic solution for wireless internet setup. It also contents Green WLAN technology so it consumes less power during stand by mode.

Step1: Step2: Step3:
Power up the router and launch the browser Enter the information provided by your ISP Start surfing!

Plug-n-Surf Installation

3-steps is all you need to set up the router. You don't need a CD for installation.




Save the planet and your pocket

Compared with generic Wireless-N routers, ASUS ECO-WiFi CPU reduces 72%* of energy consumption and utility cost.

* The result given was of an internal testing methods comparing typical router, with standby, normal and heavy traffic. Testing criteria: [Standby mode] Only WAN ports are connected. [Normal traffic] 1 wired connected PC and 1 wirelessly connected laptop for P2P download. [Heavy traffic] 4 wired connected PCs and 2 wirelessly connected laptops for P2P download. Utility cost is calculated based on 2011 US household avg. electricity price, all taxes included.




Network Map-Manual Free Management

Straight-forward design to help users to:
  1. Display the whole network status and clearly provide WAN/LAN status
  2. Securely connect to your wireless network and prevent intruders from using it
  3. Manage your network in minutes
  4. Try our EZ UI software



WPS Function& WPA/WPA2 Encryption

WEP encryption is not enough for Wi-Fi connection nowadays, and intruders may access your Internet flagrantly. Using WPS function and WPA/WPA2 encryption can firmly secure your home networks and protect the private resources.


*This product does not support universal repeater mode. If needed, please find RT-N10U, RT-N12, RT-N13U, or RT-N15U.







Features/Specifications:






Network Standard

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4

Data Rate

802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 150Mbps

Antenna

External 2 dBi antenna x 1

Operating Frequency

2.4GHz

Encryption

64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support

Firewall & Access Control

Firewall: NAT and SPI (Stateful Packet Inspection)
Filtering: Port, IP packet, URL Keyword, MAC address

Management

DHCP

WAN Connection Type

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Utilities

Device Discovery
Firmware Restore
Setup Utility

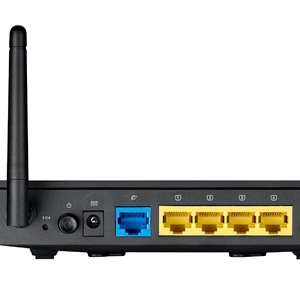

Ports

1 x RJ45 for 10/100 BaseT for WAN, 4 x RJ45 for 10/100 BaseT for LAN

Button

WPS Button, Reset Button, Power Button

LED Indicator

PWR x 1
LAN x 4
WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current

Environmental

Operating Temperature: 0 °C to 45 °C ( °F to ºF)
Storage Temperature: -20 ° to 70 ° C ( °F to °F)
Operating Humidity: 10 % to 90 % (Non-condensing)
Storage Humidity: 5 % to 90 % (Non-condensing)

Dimensions

168 x 124 x 30 mm (LxWxH)

Weight

210 g

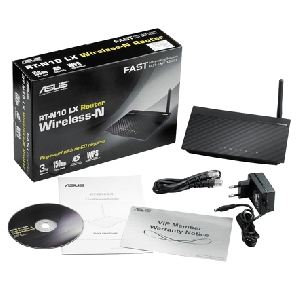

Package Content

RT-N10 LX Wireless Router
RJ-45 Cable
Power Adapter
Warranty Card
Quick Start Guide
Support CD (User Manual & Utility Software)
